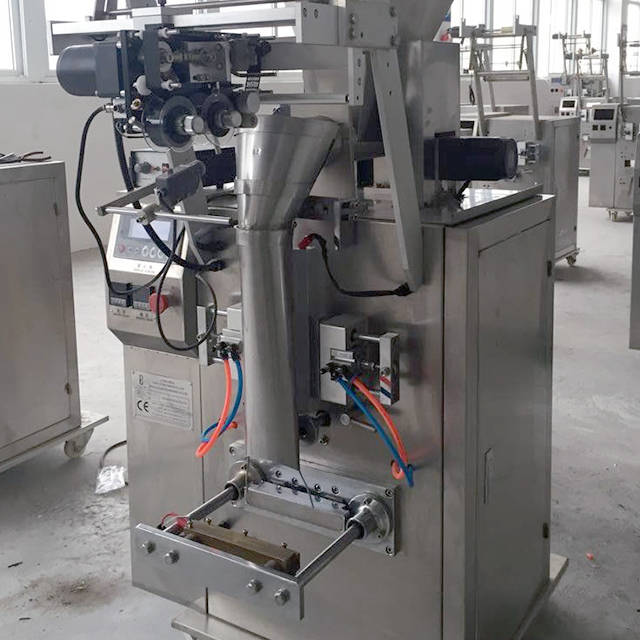

This machine is suitable for packing any kinds of Granular and powder. Most commonly used in the pharmacy, food, dairy, and agriculture industries.
1. Back sealing, three-side sealing, and four-side sealing packing method
2. The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
3. Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
5. The body and the parts touching the material are made of stainless steel.
Items / Model | DXD-350K | DXD-500K | DXD-900K |
Pouch length | 50-250mm(L) | 50~160mm | 50~120mm |
Pouch width | 50-85mm(W) | 50~105mm | 50~105mm |
Packing speed | 30-50times/min depend on pouch size and material | 20~50times/nim（depend on pouch size and material） | 80times/nim（depend on pouch size & material） |
Measuring range | 1-50ml | 1~80ml | 1~80ml |
Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE | PET/AL/PE PET/PE NY/AL/PE NY/PE | PET/AL/PE PET/PE NY/AL/PE NY/PE |
Max width of film roll | 350mm | 500mm | 900mm |
Max film roll diameter | 300mm | 420mm | 300mm |
Film roll core diameter | 75mm | 75mm | 75mm |
Power voltage | 220V/ 50HZ | 380V50Hz 3P 4W | 380V 50Hz |
Power | 5.5kw | 12 Kw | 12 Kw |
Gross Weight | 650kg | 1200kg | 1200kg |
Package size | 1400×1000×1700mm | 1680x1280x2050mm | 1500x1540x2200mm |
