Horizontal Packing Machine is a kind of advanced equipment applicable for such different materials as composite film, paper film and aluminum film to pack various solid and regular-shaped objects.
Can Be Applied to:

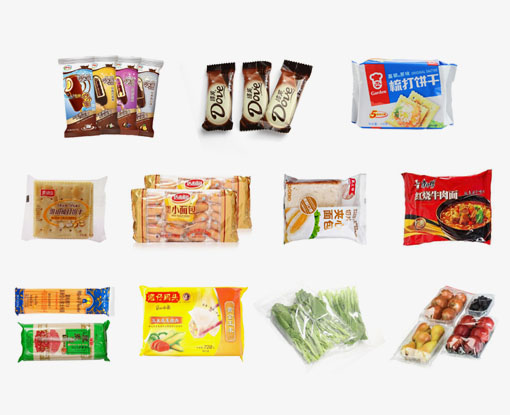

Food ( bread, cookies, ice lolly cake, chocolate ), Plastic(cutlery, tray ), Hardware, Soap, Sponge, Tissue, Card etc.
1.Dual inverters control, bag length can be set and cut in one step.
2.Computer interface operation, convenient and quick parameter setting.
3.PLC control, stable performance available for upgrade.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Using double encoder enables stable performance.
Model | KD-260 | KD-350 | KD-550 |
Max.Film width | 260mm | 350mm | 550mm |
Max capacity of packing | 20-120 pcs/ min | ||
Film thickness | 0.03-0.08mm | ||
Bag Length | 60-300 ( Do not exceed this size ) | ||
Packing width | 25-260mm | 25-350mm | 25-550mm |
Packing Height | ≤80mm | ||
Power Supply | 220V 2.4 kW | ||
Overall dimensions | 2600*750*4500mm | 3500*880*4500mm | 3800*920*4500mm |
Total Weight | 680kg | 700kg | 700kg |
