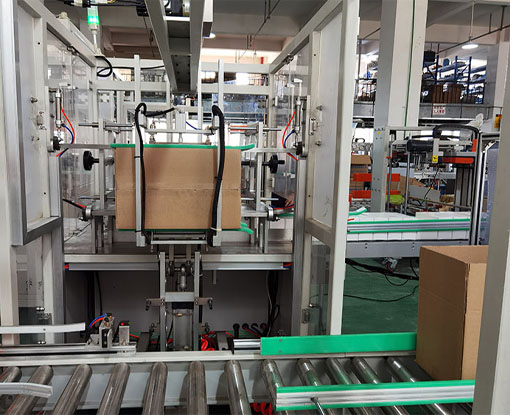

Automatic Corrugated Box Forming Packing Machine

CPM-15 Automatic carton unpacking forming packing and sealing machine is a fully automatic packaging equipment specially developed for automatic packaging.

The packing line can realize unpacking - packing - sealing - in box detection - suitable for large-scale production of pharmaceutical and daily chemical products.

Fully automatic unmanned packaging operation, the equipment is stable, the production efficiency can reach 1-24 boxes / min, and all performances have reached the international advanced level.

Features

01.The whole line automatically completes unpacking, packing and sealing, effectively reducing labor costs;

02.French Schneider high-end PLC control system with three servo motors;

03.With stand-alone independent debugging and production control, adjustable screen display and output statistics, machine operating speed, equipment and other fault numbers;

04.Side push packing, neat stacking, stable and reliable block objects;

05.It has carton quality and carton reserve detection and monitoring, fault alarm, fault shutdown and emergency shutdown and other safety protection functions;

06.The packing shall be smooth without damaging the appearance of the carton. The appearance of the finished carton shall be intact, tidy and qualified;

07.The adjustment of the replacement specification station adopts self-locking wrench, rocker, and hand wheel to exchange quickly, and has strong versatility;

08.Convenient and accurate adjustment can be made when the stacking specification and carton specification change;

Technical Parameter
Model
CPM-15
Theoretical maximum production capacity
300 (boxes/hour)
Actual production capacity
≤24 carton/min (depending on the packing quantity)
Carton size
Minimum: 220×150×120 ; Maximum: 500×400×400
Power supply
AC380 / three-phase / 50Hz
Power
7.5kw
Air pressure
0.6MPa
Air consumption
<1m³/hour
Dimensions
5200*1600*2400
Weight
2500kg
Main materials
aluminum alloy, carbon steel, stainless steel
