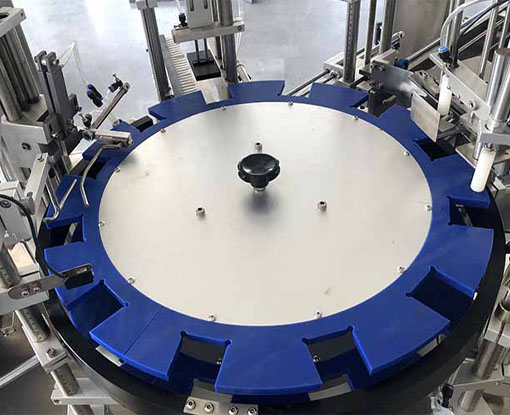

Vertical Rotary Cartoning Machine

Automatic Vertical Cartoning Machine is specially design to automatic pack small quantities’ multi size box. With low cost and only require small area.


This machine is applicable for cylinder-shaped, tubular and Irregular shape products. And it is used for cosmetic, bottles,blister packs, pouches, sachets or tube etc. packing into square box.


Features

1. The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters.

2. Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.

3. The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.

4. This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.

5. Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.

Technical Parameter
Model
ZH-50
Packing speed
20-50 Cartons/min
Carton size range
L(40-310)*W(12-185)*H(12-132) mm
Carton gram requirements
135-350g/m3
Motor power
2.5KW
Power supply
Three phase 380V 50Hz
Machine noise
≤80dB
Air pressure
0.5-0.8 Mpa
Air consumption
150L/min
Dimension
1590*1380*1832mm
Weight
650Kg
Warranty
5 years
