V-type Mixer

The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries.

The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.

Features

1. It is used to mix the dry-powder, granular materials with good liquidity.

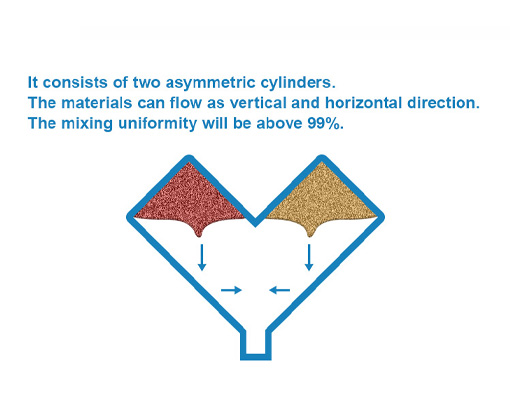

2. It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.

3. It adopts vacuum feeding under sealing state. There’s no driving structure inside and be clean, no dead corner in according with GMP standard.

Technical Parameter

Spec\item

Total volume L

Working capacity L

working capacity kg

rotating speed rpm

power kw

weight kg

VH-50

50

25

15

25

0.55

500

VH-150

150

75

45

20

0.75

650

VH-300

300

150

90

20

1.1

820

VH-500

500

250

150

18

1.5

1250

VH-1000

1000

500

300

15

3

1800

VH-1500

1500

750

450

12

4

2100

VH-2000

2000

1000

600

12

5.5

2450

VH-3000

3000

1500

900

9

5.5

2980

VH-4000

4000

2000

1200

9

7.5

3300

VH-5000

5000

2500

1500

8

7.5

3880

VH-6000

6000

3000

1800

8

11

4550

VH-8000

8000

4000

2400

6

15

5200

VH-10000

10000

5000

3000

6

18.5

6000
