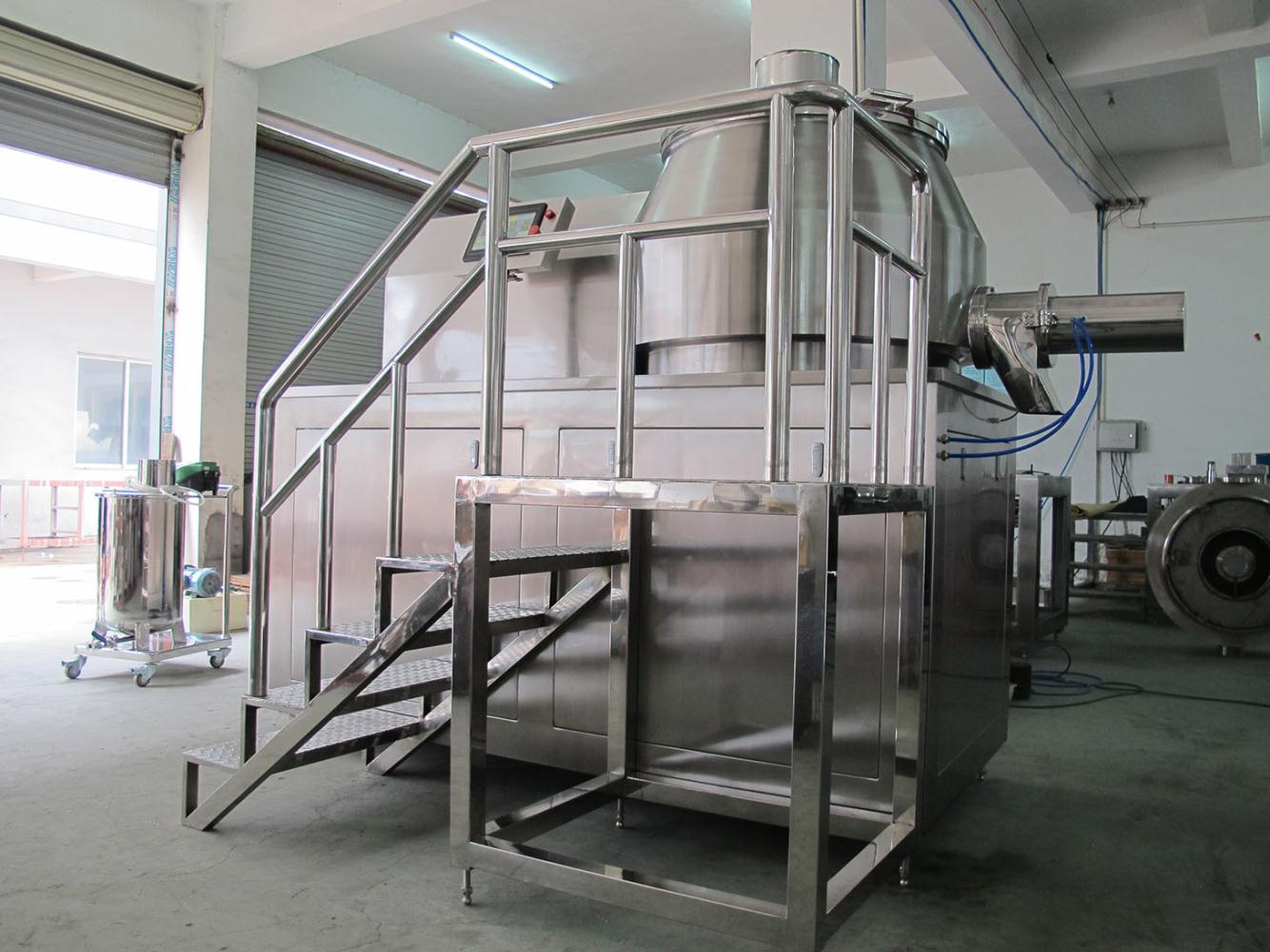

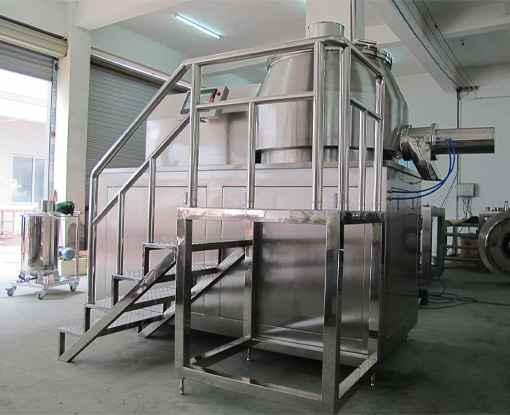

GHL-Series Wet Mixing and Granulator

Wet Mixing and Granulator is widely used in pharmaceutical, food, chemical and other fields.

Features

1.It is the structure of horizontal cylinder (cone).

2.Full sealed driving shaft, to use water when cleaning.

3.Fluidization granulation, the finished granules are similar to roundness with good liquidity.

4.Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.

5.Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.

6.All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.

7.Whole operation has the strict safety precautions.



Technical Parameter

Model

GHL-10

GHL-200

GHL-300

Volume

10L

200L

300L

Working capacity

2-6L

60-150L



Output

1-3kgs/batch

30-75kgs/batch

30-120kgs/batch

Operating time

Mixing:2min Granulation:7-14min/batch

Mixing:2min Granulation:7-14min/batch

Mixing:2min Granulation:7-14min/batch

Size of the finished granule

Φ0.14-Φ1.5mm(12mesh-100mesh)

Φ0.14-Φ1.5mm(12mesh-100mesh)

Φ0.14-Φ1.5mm(12mesh-100mesh)

Mixing Speed

50-500rpm

30-260rpm

30-220rpm

Mixing power

2.2kw

15kw

18.5kw

Granulation Speed

50-3000rpm

50-3000rpm

50-3000rpm

Granulation power

0.75kw

4kw

5.5kw

Air compressor

0.2m³ (prepared by buyer)

0.5m³ 0.7Mpa (prepared by buyer)

0.5m³ 0.7Mpa (prepared by buyer)

Inlet of cooling water and compressed air

Φ10mm

Φ10mm

Φ10mm

Dimension

1280×530×1320mm

2180×810×1950mm

2420×1060×2150mm

Weight

330kg

1350kg

1600kg
