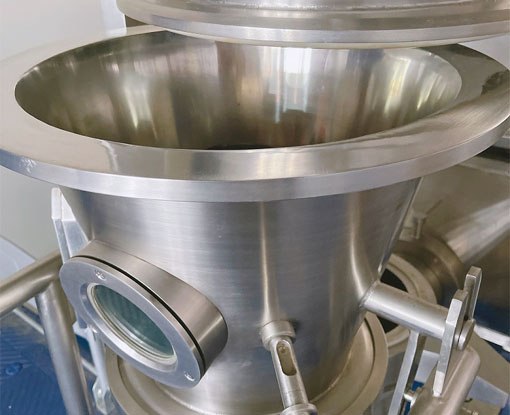

Fluid Bed

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Features

1.By using powder granulation, to improve the liquidity and thinner dust.

2.By using powder granulation, to improve solubility property.

3.Mixing—granulation—drying can be finished in one device (one-step granulation)

4.To adopt antistatic filtering mediums, to ensure safe operation.

5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.

6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.


Technical Parameter

Model

FL-200

Volume (L)

670

Amount to be treated (kg/per time)

100/300

Power of fan (kw)

30

Consume of steam 0.4MPa(kg/h)

282

Consume of compressed air (m3/min)

1.1

Noise,dB (A)

(fan is installed separately) ≤75

Main machine height (m)

2.34×1.7×3.8
