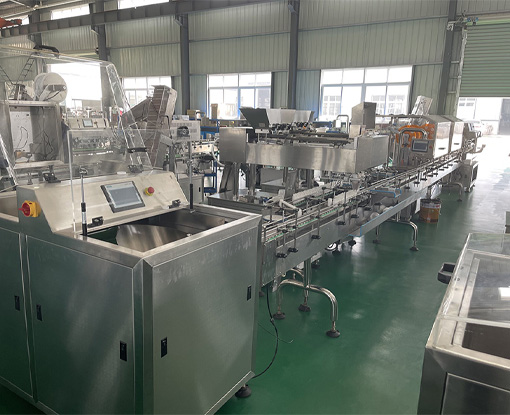

The automatic counting and bottling line is a complete solid granule product packaging line that can count hard capsules, soft capsules, tablets, augers, snack foods, hardware, etc., and has a wide range of applications.
The whole line consists of
1.bottle ordering machine, 2.electronic counting, 3.automatic desiccant inserting machine, 4.capping machine, 5.aluminum foil sealing machine, 6.labeling machine. （According to the needs of users, adding or deleting machines）
All machines can be operated synchronously after connection and ensure stability. Each machine of this production line can adjust quickly and use independently. And the whole production line can assemble and separate easily and quickly.
Model Name | LTEC-8 | LTEC-16 | LTEC-24 | LTEC-32 |
Hopper Volume | 20L | 40L | 45L | 80L |
Capacity | 10-20bottles/min | 60-70bottles/min | 80 bottles/min | 40-120bottles/min |
Filling Quantity | 2-9999pcs/bottle | 15-9999pcs/bottle (Adjustable) | ||
Bottle Size | Diameter: 30-75mm | Diameter: 30-90mm | ||
Counting Size | Thickness: 3-10mm | Thickness: 3.5-10mm | ||
Compressed air | 0.5Mpa | |||
Conveyor Belt Length |
| 2400mm | 2400mm | 3000mm |
Machine Weight | 120kg | 500kg | 750kg | 1000kg |
Machine Size（mm） | 660*1280*780 | 600*2400*1670 | 2000*1600*1680 | 2200*1400*1680 |
