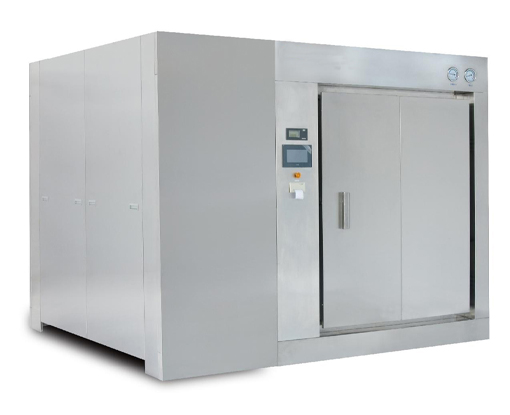

Pure Steam Autoclave Sterilizer

Sterilizing Media: Moisture Heating Sterilizing is adopting full steam as the sterilizing media, take the advantage of its released heat and moisture while it condensation to make the protein of bacterium in Hydration in order to kill them. During this processing, it must adopts pure non-heating steam to keep the production upto GMP requirement.

Features

Main Machine Material: All of the equipment and containers contact to the sterilizing product must up to Cleaning Standard. Regards to Pure Steam Sterilizing autoclave , all of the connection pipes and containers must be stainless steel 316L.

Autoclave Sterilizer is designed strictly according to GMP Standard, adopts horizontal rectangle two layer structure. It works with pure steam as sterilizing media in inner working room. And it use normal hot pot steam pre-heating and drying in jacket layer.

Autoclave Sterilizer is suitable for B/C Clean Room where produce sterile clothing, different kinds antibiotic, rubber butyle, flip off cap, injection bottles, etc.

Autoclave Sterilizer come with pulsation sterilizing function, besides its processing program can be designed by customer according to different biotechnology production use.

Normal Program and processing:

Normal Equipment and clothing program processing: use pulsation vacuum style to make the inner room high sealed vacuum without any cold air to ensure the steam can be went through uniformly and sterilizing temperature uniformly. After sterilization, vacuum pumping and jacket heating to dry and cooling down the product. The processing program suitable for sterilizing Filling container, sterile clothing in 100 grade Clean room.

Normal Liquid Processing Program: suitable for small unsealed filling liquid sterilization.





Technical Parameter

Item

Specification

Model

HWZ-30

Power Supply

380V 50hz Three phase (also can be required by customer)

Working Frequency

2450±50MHZ

Electronic Consumption

44kw

Micro Wave Power

30KW

Motor power

2.2kw

Evaporation Speed

24-30Kg/Hour

Vacuum Rate

-0.075MPa

Micro Wave Leakage

Up to National Standard ≤5MW/CM2

Machine Size

2500×2100×2050mm

Vacuum pump power

11KW

Temperature Range

30-80℃

Packaging Details

Wrapped by stretch Film with desiccant bags
     Packed in to Export Standard Anti moisture Wooden case
     Glued Marks label on wooden case
