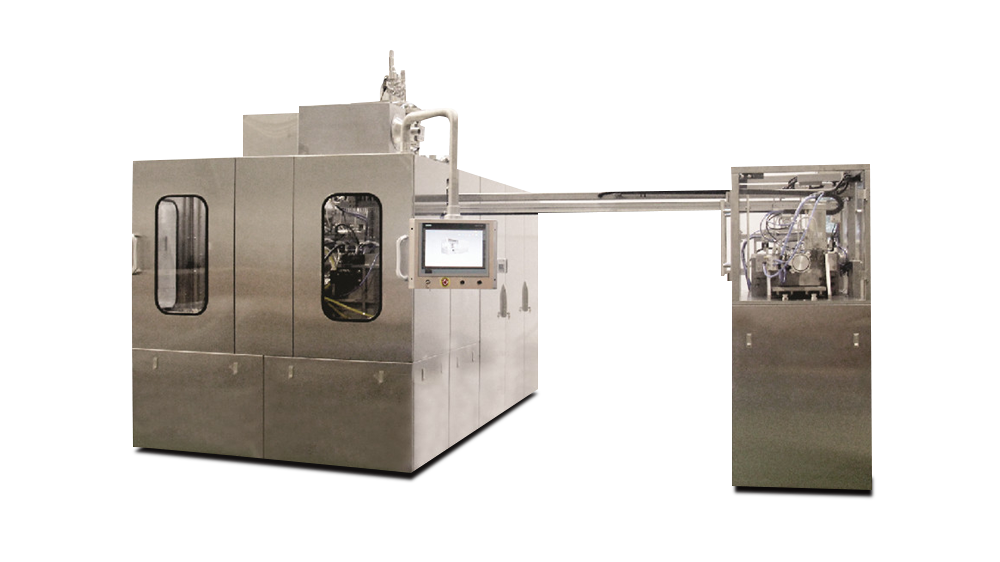

Plastic-Ampoule BFS Machine_Sodium Chloride_Zhejiang LeadTop Pharmaceutical Machinery Co., Ltd.

Features

1.The machine adopts PE,PP or other resin as raw material to produce plastic containers such as plastic bottle,ampoule bottle,eye drops bottle and oral solution bottle,and later completes filling and sealing

2. Modular design with the feature of compact structure,easy operation,stable running and high pass rate

3.Various moulds incudeing single row type,double row type and compound type enable the machine to produce different dimensions of bottles in the range of 0.2ml-1000ml.

4.The CIP/SIP function meets the requirements of sterile filling and sealing and guarantees the product quality.

5.Insolution system can be optionally equipped to separate filling area from operating maintenance area.Filling area is in the Class 100 clean room where the dust particle quantity can be limited as low as possible.

6.Different product has different production speed,with the max speed up to 20,000 bottles/hour.

7.Special bottle shape can be customized according to user’s requirement

Technical Parameter

1 Product Parameters
1.1	Product type
1.2	Raw material	PP or LDPE	Choose one of
1.3	Product dimension	250ml/500ml
1.4	Product shape	Customization	Refer to the attached diagram
1.5	Filling Product	Water-like	Max temperature 25°C，Max viscosity. 100 mpaxs，No sedimentation，No foaming
2 Mold Parameters
2.1	Parison quantity	12
2.2	Tube diameter of Parison	24mm
2.3	Single parison capable of forming the number of containers		Decided by the diameter of the container
2.4	mold shape	Single row mold
2.5	Mold quantity	2
2.6	Mold chamber quantity		Parison quantity×Single parison capable of forming the number of containers
2.7	Mold Lifespan	running time about 100 thousand hours	not damaged mechanically or by man
3 Technical Parameters
3.1	Each chamber capacity	max.180 pcs/h
3.2	Production capability	Each chamber capacity×Mold chamber quantity	actual output depends on the dimension of product and plastic particles
3.3	Filling error range		Compliant with pharmacopoeia
3.4	Weight error range	±0.3g	same batch raw material
3.5	Container thickness error	±0.2mm
3.6	Product pass rate	≧98%
3.7	Product quality	compliant with relevant quality standard	Transparency, sealing, strength, appearance
