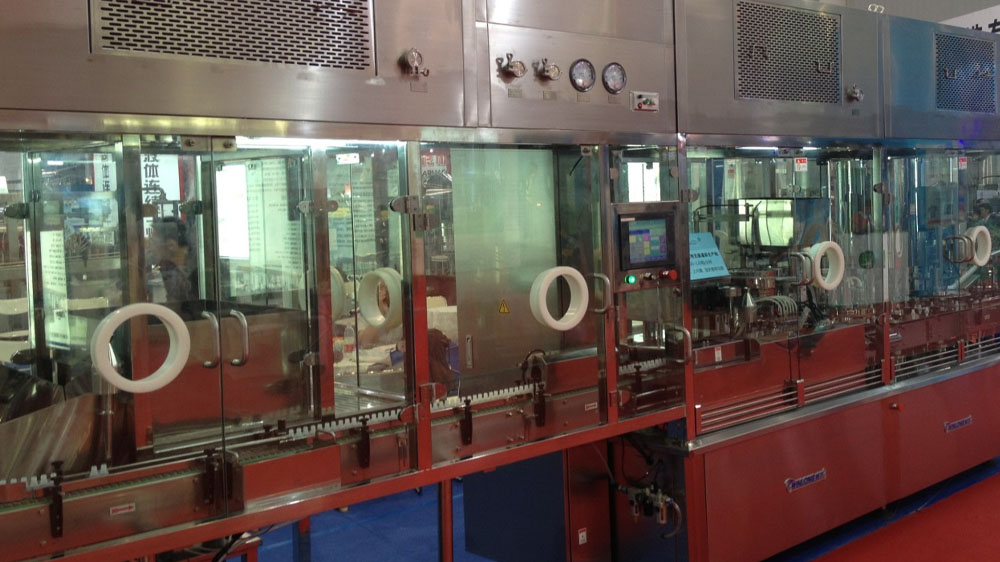

The eyedrop monobloc of filling machine(5 in 1) consist of four main units including unscrambler, conveyor, air washer, monobloc of filling plugging and capping unit. The machine is mainly used to accomplish bottle unscrambling, conveying, air washing, dosage discharging, plug & cap placing, The entire production process is protected under laminar flow H14 and aseptic isolation cover, which isolate all working area and keep eyedrops product be filled under aseptic environment. the regional isolation protection to ensure that the eye drops sterile production. The whole machine meet the requirements of GMP version 2010. The production line is also suitable for the production of other similar plastic bottle.
Big bottle storage hopper, automatic unscrambling system
Bottle conveyor, auto reject bottle fell down system
Static elimination, bottle air washing system
Static elimination, plug/cap air washing system
High Precision ceramic piston pump filling system
Vacuum suck and auto pick and place plug system
Auto pick and place cap system
Constant magnetic torque, rotary screw capping system
Laminar flow H14 and isolate hood system--option
Bottle used | 5-50ml Eyedrop type plastic bottle |
Production capacity | 5000bph@30ml |
Filling nozzles | 8 |
Plug placing heads | 8 |
Capping heads | 8 |
Filling precision | ≤±2% |
Compressed air required | 15m3/h 0.6~0.8MPa |
Total power | 5kw 380V/220V 50Hz |
Whole machine net weight | 2400kg |
Overall dimension(LxWxH) | 6880x1500x2000mm (Exclude LAF) |
