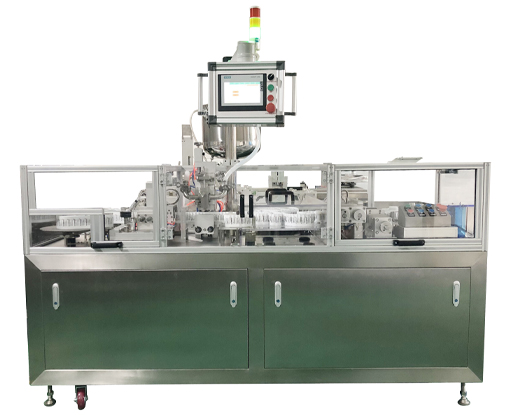

The automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 10,000 grain/hour
Production process：
From automatic suppository shell forming, to the filling station of liquid medicine, Recirculating cooling set (liquid to solid), Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)
| Model | SupLab-1 | SupLab-3 | SupLab-7 | SupLab-10 |
| Filling head | 1 | 3 | 7 | 10 |
| Output | 1000-1500 pcs/h | 4500-5000 pcs/h | 10000 pcs/h | 15000 pcs/h |
| Single dosage | 0.5—5g | 0.5—5g | 0.5—5g | 0.5—5g |
| Dosage allowed | ＜±2% | ＜±2% | ＜±2% | ＜±2% |
| Packaging Film | PVC\PE | PVC\PE | PVC\PE | PVC\PE |
| Stirring tank capacity | 20L | 30L | 70L | 70L |
| Air pressure | ≥0.6Mpa | ≥0.7Mpa | ≥0.7Mpa | ≥0.7Mpa |
| Air consumption | 1.2m³ | 1.5m³ | 1.5m³ | 1.5m³ |
| Water consumption | 50kg(recycling) | 50kg(recycling) | 50kg (recycling) | 50kg (recycling) |
| Working voltage | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
| Total power | 4KW | 5KW | 7.5KW | 9.5KW |
| Machine Weight | 500KG | 1000KG | 2000KG | 2500KG |
| Overall dimensions | 2300*1200*1800mm | 3587*1388*1828mm | 5302*2120*1809mm | 5965*2120*2,150mm |
