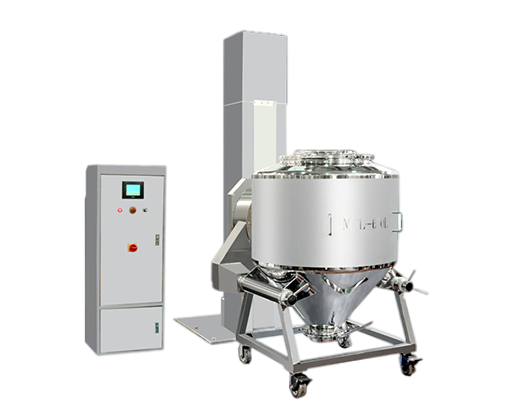

This machine can apply to different bin containers which meets the requirements of mass and different material.
1. This machine can apply to different bin containers which meets the requirements of mass and different material.
2. PLC control, touch screen display and frequency control, which can automatically accomplish all the programs, and has man-machine interface and the function of data storage and printing
3. Using mechanical transmission avoids oil leakage due to hydraulic transmission, environment pollution and medicine quality arises.
4. Bin containers are detachable so that frequent material transfer is not needed during the production which can prevent the pollution of flying dust and cross contamination, and optimize material transfer process and make washing easy.
5. This machine has double infrared detectors. AV alarm safety device and shock absorption device with easy and steady operation.
Model | Main structural dimensions | Mixing hopper clamping range(L) | Maximum loading coefficient(η%) | Maximum material load(kg) | Installation power(KV) | Mixing speed(rpn) | Machine weight(kg) | ||||||||
H | H1 | H2 | H3 | H4 | H5 | W | W1 | L | |||||||
YHA-1 | 2500 | 610 | 870 | 1130 | 2400 | 2600 | 1550 | 920 | 2430 | 300-800 | 70% | 340 | 5.5 | 3-12 | 1200 |
