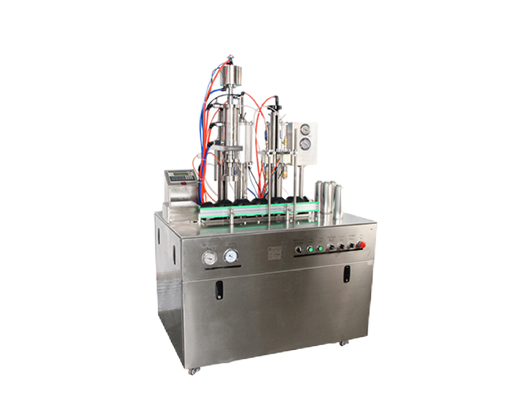

Automatic aerosol filling machine consists of three parts: liquid filling, sealing and gas filling, can be designed at one worktable or separate worktables. Using linear pushing bottle system, cans moving automatically.
Automatic aerosol filling machine consists of three parts: liquid filling, sealing and gas filling, can be designed at one worktable or separate worktables. Using linear pushing bottle system, cans moving automatically.
It is widely used in daily chemical, auto-care, household-care, food and pharmaceutical industry.
| Applicable bonnet | 13-31.5mm |
| Bottle diameter | φ 30- φ 70mm |
| Bottle and can height | 80-300mm |
| Liquid capacity | large capacity 700g, small capacity 50g |
| Liquid accuracy | ≤ 1% (measured by large capacity) |
| Inflation capacity | 50-700ml |
| Inflation accuracy | ≤ 1% (measured by large capacity) |
| Filling materials | subject to customer materials |
| Filling speed | 1200-2500 / hour (subject to material viscosity) |
| Air source | 0.6-1mpa |
| Operating temperature | - 5 ℃ ~ + 40 ℃ |
