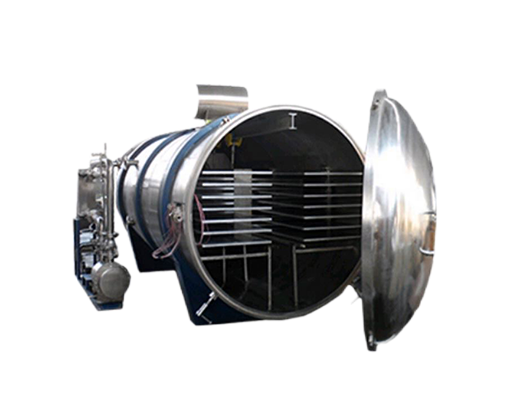

Fruit Vacuum Freeze Dryer

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials


Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.

Technical Parameter
Power167Kw, 380V±10%,50HZ,3Phase,5Wire
Vacuum function19.8kw
Refrigeration function92kw
Heating function55.5kw
Compressed air≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity≥50m3/h(T≤30℃、P=0.2-0.3Mpa)
Defrost water Quantity≥4000kg(T≥30℃、P=0.1-0.2Mpa)
Whole volume(L×W×H)Dry chamber and Condenser:
Freeze system vacuum system control system:
L=2600mm W=2200mm H=2000mm
Final dimension based on design
Total weight15T(Approx.)
