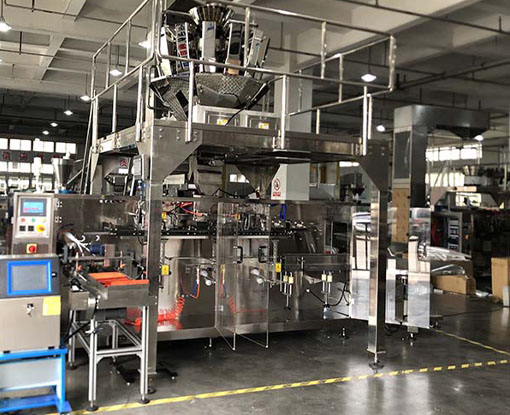

Horizontal pre-made pouch automatic packing machines series produced by our company adopted international advanced technology and derives from European classical packing machine. With blend of current packing technology, reasonable design and stable running, it is able to pack various sizes of pre-made pouch.
Equipped with flexible processing unit, it can automatically complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery.
Premade pouch packing series is the most optimum choice to realize economic and reasonable packing.
| Model | HorizonTop--210 | HorizonTop--250 | HorizonTop--360 | HorizonTop--450 | HorizonTop--500 |
| Speed | 30-50 bags/min | 30-45 bags/min | 15-35 bags/min | 40-80 bags/min | 3-15 bags/min |
| Accuracy | ± 1.5% | ± 1.5% | ± 1.5% | ± 1.5% | ± 1.5% |
| Bag width | 55-200mm | 80-250mm | 120-350mm | 100~200mm | 120-400mm |
| Bag height | 100-280mm | 100-280mm | 100-280mm | 100~280mm | 150-500mm |
| capacity | 1-5kg | 1-5kg | 1-5kg | 1-5kg | 1-15kg |
| Power | 4kw | 4kw | 4kw | 6kw | 4kw |
| Gas consumption | 0.6m3/min | 0.6m3/min | 0.6m3/min | 0.6m3/min | 0.6m3/min |
| Air pressure value | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
| Weight | 1450kg | 1700kg | 2200kg | 2000kg | 800kg |
| Size（mm） | 2900*1000*1390 | 3500*1000*1390 | 3900*1000*1390 | 3800*1000*1200 | 2300*1000*1390 |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
