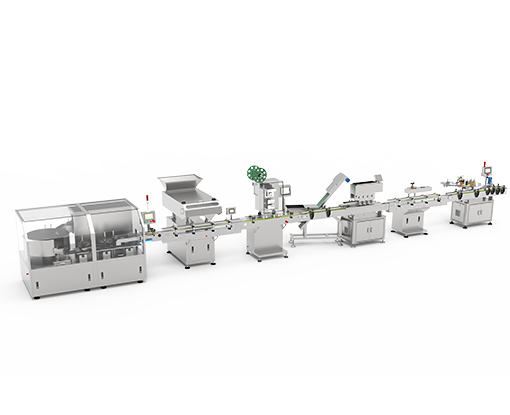

Automatic Counting and Bottling Line

The automatic counting and bottling line is a complete solid granule product packaging line that can count hard capsules, soft capsules, tablets, augers, snack foods, hardware, etc., and has a wide range of applications.

Features

The whole line consists of


1.bottle ordering machine,  2.electronic counting,  3.automatic desiccant inserting machine,  4.capping machine,  5.aluminum foil sealing machine,  6.labeling machine. (According to the needs of users, adding or deleting machines)



All machines can be operated synchronously after connection and ensure stability. Each machine of this production line can adjust quickly and use independently. And the whole production line can assemble and separate easily and quickly.

Technical Parameter
Model NameLTEC-8LTEC-16LTEC-24LTEC-32
Hopper Volume20L40L45L80L
Capacity10-20bottles/min60-70bottles/min80 bottles/min40-120bottles/min
Filling Quantity2-9999pcs/bottle15-9999pcs/bottle (Adjustable)
Bottle SizeDiameter: 30-75mm
Height:40-250mm
Diameter: 30-90mm
Height:40-250mm
Counting SizeThickness: 3-10mm
Diameter: 3-15mm
Length: 3-30mm
Thickness: 3.5-10mm
Diameter: 3.5-15mm
Length: 3.5-30mm
Compressed air0.5Mpa
Conveyor Belt Length



2400mm2400mm3000mm
Machine Weight120kg500kg750kg1000kg
Machine Size(mm)660*1280*780600*2400*16702000*1600*16802200*1400*1680
