ZH-series Automatic Horizontal Cartoning Machine

ZH-Series Automatic Cartoning Machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes.

Features

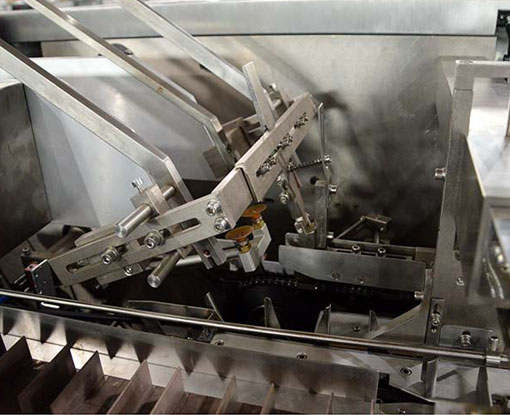

1.Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable. 2.When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively. 3.Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable. 4.Vibrating material categorizing and feeding mechanism is stable and reliable. 5.Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine. 6.It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel. 7.Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation. 8.Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.

Technical Parameter

Model

ZH-100

ZH-130

ZH-300

production speed

50-100 boxes/min

30-130 boxes/min

200-300 boxes/min

Carton Size (Customizable)

(40-125)*(12-85)*(16-70)mm

(65-240)*(30-180)*(15-75)mm

(70-200)*(35-120)*(20-70)mm

Power

220V/380V 50Hz

220V/380V 50Hz

220V/380V 50Hz

Air consumption

120-160 L/min

120-160L/min

≥0.2m3/min

Compressed Air Pressure

0.5-0.8 MPa

≥0.6MPa

0.5-0.7Mpa

Size

3250*1450*1550mm

3250*1210*1770mm

4950*1600*1700mm

Weight

1100kg

2000kg

3500kg
