LTRJ-300

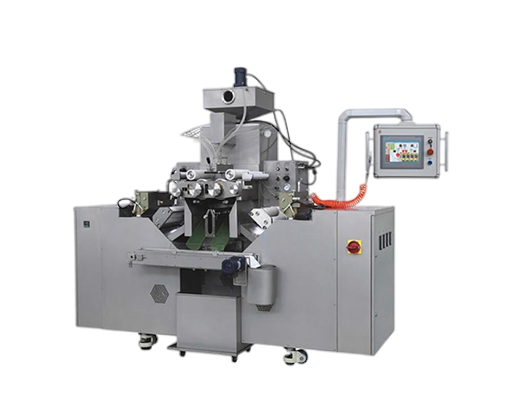

Soft gel encapsulation machine can quantificational inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of soft gel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the soft gel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.


This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.


Automatic control gelatin & material liquid, including electric control cabinet, refrigerator with compressor Panasonic, conveyer, capsule-conveying fan, one set of mould. Adopt well-known brand electric components in the world, PLC controllor with intelligent module and HM, reserved module can be connected with computer network.

Features

1.Strong product capacity, It can produce 1,555,200 pcs per day (oblong/ 1000mg per softgel) and 2,419,200pcs per day(oval/500mg per softgel)


2.Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%. Capsule package rate is up to 98%.


3.The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.


4.High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.


5.Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.


6.Advanced process and assembly techniques make the complete appliance quality stabilization, high working rate, and good shape pill.


7.Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.


8.The liquid level in the gelatin box is fixed automatically in the constant position and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.


9.The power of main motor is 8.9KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).


10.Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelati

Technical Parameter
ITEM/MODELLTRJ-300
Rotary speed of die roll0-5rpm
Supplying Volume for flow single-pillar pistol0-2ml
Difference among filling volume±2%
Power for whole machine17KW
Power supply380V 50HZ
Main Body sizes2400×1220×2200
Weight of whole machine1900Kg
