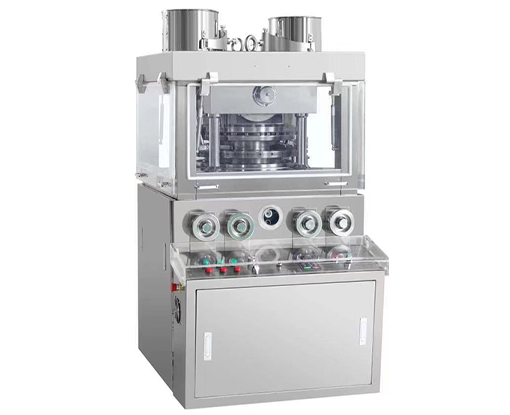

High quality machines are based on advanced and reasonable design. New design GZPK370 series high speed tablet press is developed on the basis of years manufacture expertise with it’s excellent standardization and modularity in series.
1. Design of GMP.
2. High quality all stainless steel construction.
3. Reliable overall sealing and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easy remove parts for maintenance.
6. 360 degree for easy observation and cleaning.
Quantity of Punch & Die (set) | 26 |
Tooling Type | D |
Main Pre-pressure (kn) | 16 |
Max. Pressure (kn) | 100 |
Max. Dia. of Tablet (mm) | 25mm |
Max. Thickness of Tablet (mm) | 1-8 |
Max. Depth of Filling (mm) | 25 |
Middle Die Diameter (mm) | 38.1 |
Punch diameter (mm) | 25.35 |
Rotation Speed (r/min) | 13-110 |
Production Capacity (pcs/h) | 130000 |
Voltage (v/hz) | 380/50 |
Motor Power (kw) | 7.5 |
Outside Size (mm) | 820×1100×1750 |
Weight (kg) | 1600 |
