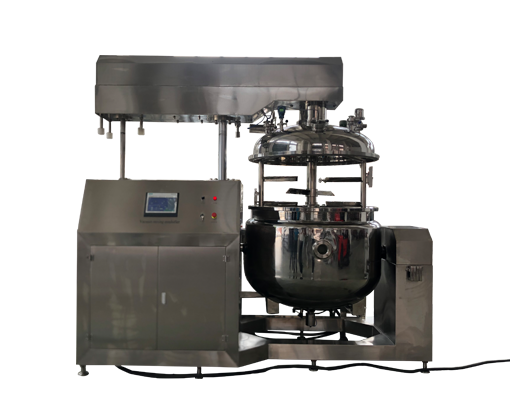

Emulsifying Mixer Homogenizer

The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Features

1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;


2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;


3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;


4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.


5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min

Technical Parameter
ManufacturerChina LTPM Group Co., LTD
PN200L vacuum emulsifying mixer
CapacityDesign volume: 200L, working capacity:160L
Kettle CoverLiquid(particle)inlet, sunk material inlet, air inlet    with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing potMaterialInner layer: SUS316L thickness: 4mm
  Middle layer: SUS304 thickness: 4mm
  Outside layer: SUS304 thickness:3mm
 configurationBottom material exhaust, size: 1.5”
  Temp. sensor (0-199℃)
  Electrical heating: 8kw, cooling water inlet
Stirring systemHomogenizer1.Material: SUS316L; standard    homogenizer
2. Power: 4kw/380/50Hz; RPM: 0--2800R/Min
 Stirring scrap and middle stirringMaterial: SUS316L,Scrap material: PTFE
  1. Stirring scrap and middle stirring use the same    motor
2、Power:1.5 kw/380V/50Hz;RPM:0~86r/min(Frequency    control)
3. Stirring scrap and middle stirring rotating the opposite direction
  Safety: 1. During stirring, the cover can not open, 2.    Cover lift can not stirring.
Vacuum system1. Vacuum pump: water recycle, power 1.5kw/380V/50Hz
2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating methodJacket electrical heating
Exhaust methodElectric doom and bottom discharge or positive pressure    discharge material
PressurePressure in the pot during working: -0.090 Mpa; Jacket    working pressure:0.2 Mpa
Control boxSUS304 , 1.2mm thickness
Dimension1900mm×600mm×2650~3500 mm
 Shelf is SS, platform with raised platform and SS    guardrail
Spare partsOne year spare parts and tools
GuaranteeOne year
Using lifeMore than 15 years
